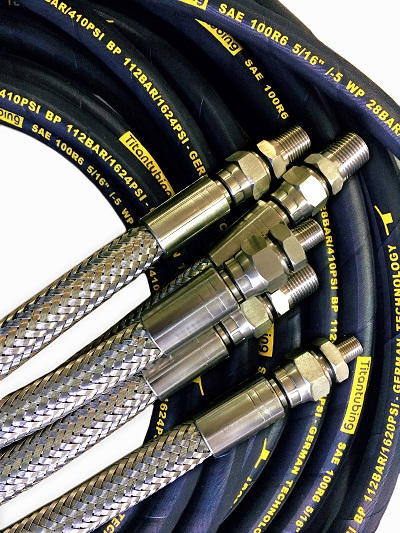

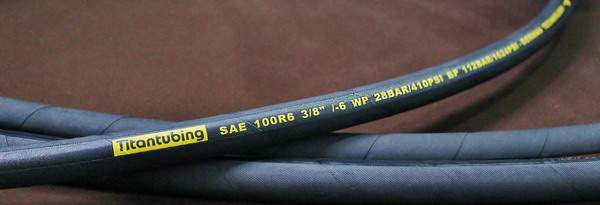

DIN EN 854 SAE 100 R 6 _wps15B7.tmp.png)
HOSE CONSTRUCTION:
Tube: oil resistant synthetic rubber
Reinforcement: one textile braid wire braid
Cover: abrasion, ozone and weather resistant synthetic rubber
Temperature range (medium): -40°C to +121°C
Nominal ф |
Inside ф |
Outside ф |
Working pressure
|
Test pressure |
Burst pressure
|
Bend radius
|
Weight
|
mm |
dash |
inch |
Min |
Max |
Min |
Max |
bar |
psi |
bar |
psi |
bar |
psi |
mm |
kg/m |
5 |
-3 |
3/16 |
4.6 |
5.4 |
10.3 |
11.9 |
35 |
510 |
70 |
1015 |
140 |
2030 |
50 |
0.10 |
6 |
-4 |
1/4 |
6.2 |
7.0 |
11.9 |
13.5 |
28 |
410 |
56 |
810 |
112 |
1620 |
65 |
0.13 |
8 |
-5 |
5/16 |
7.7 |
8.5 |
13.5 |
15.1 |
28 |
410 |
56 |
810 |
112 |
1620 |
75 |
0.15 |
10 |
-6 |
3/8 |
9.3 |
10.1 |
15.1 |
16.7 |
28 |
410 |
56 |
810 |
112 |
1620 |
75 |
0.18 |
12 |
-8 |
1/2 |
12.3 |
13.5 |
19.0 |
20.6 |
28 |
410 |
56 |
810 |
112 |
1620 |
100 |
0.26 |
16 |
-10 |
5/8 |
15.5 |
16.7 |
22.2 |
23.8 |
24 |
350 |
49 |
710 |
98 |
1420 |
125 |
0.31 |
19 |
-12 |
3/4 |
18.6 |
19.8 |
25.4 |
27.8 |
21 |
310 |
42 |
610 |
84 |
1220 |
150 |
0.40 |
25 |
-16 |
1 |
25.0 |
26.4 |
33.0 |
34.2 |
17 |
250 |
34 |
500 |
68 |
1000 |
170 |
0.55 |
|
